Duct Sealing Installations & Projects

Welcome to the definitive guide on duct sealing solutions, proudly presented by AC Cable Solutions. In this comprehensive blog, we delve into the cutting-edge world of duct sealing and highlight our innovative range of systems, kits, and seals, which are meticulously designed and supplied to meet the highest standards.

Our product portfolio is engineered to cater to various applications, from our highly efficient Duct Seal LG Duct Seal HG and Duct Seal FR to Kraso's extensive range of mechanical transit sealing systems for pipes and cables. Their versatility sets our solutions apart; our seals, whether compound-based or mechanical, are designed to work seamlessly across all cable voltage levels, from Low Voltage (LV) to High Voltage (HV). The UK and international utilities trust our seals to protect medium voltage (11kV/33kV) and high voltage (66kV/132kV) cables entering substation ducts and buildings.

Whether you seek expert advice on effectively sealing a cable duct or are exploring the best duct sealing kits available, we've got you covered. This blog offers a visual and informative journey through various duct sealing installations, demonstrating our products' unparalleled effectiveness and adaptability. With detailed images and insightful descriptions, we'll take you behind the scenes of each project, showing why countless customers rely on AC Cable Solutions as their preferred supplier for robust and reliable duct seals.

Project - Sealing a 400mm Pre-Insulated District Heating Pipe

Installation:

Our client required four mechanical seals to secure large lateral ducting that housed a 400mm pre-insulated pipe. These seals were essential to prevent the ingress and egress of water and gas. Given that these pipes carry hot water and have a large diameter, the seals needed to accommodate movement. The seals we used on this project allow for an 8-degree deviation and axial movement, ensuring long-lasting performance by adapting to the natural shifts and adjustments in your systems.

• Gentle on insulation: The rubber composition of the Kraso Type GR seal is expertly designed to protect your insulation, preventing any damage.
• Enhanced pressure distribution: Our seal features central plates that evenly distribute pressure, significantly reducing the risk of damage to your pipework.
• Foolproof torque control: Equipped with a patented torque nut, our Kraso seal guarantees the correct torque application, eliminating the possibility of over-tightening or under-tightening.
• Flexibility in movement: With an impressive 8-degree deviation and axial movement, our seal effortlessly adapts to the natural shifts and adjustments in your system, ensuring enduring performance.

Duct type & size - 485mm O/D metal pipe

Pipe - 400mm Pre-insulated Dictrict Heating Pipe

Seals Ordered

• 4 x KRASO DD/GR Split 480mm Customised Seals to suit the 400mm pipe

Timeline

• Enquiry to quote: 2 hours
• Manufacturing time: 24 hours
• Shipping from Germany: 7 days

 Website Link: Click HERE to view product information

_____________________________________________________

Project - Removing old compound, cutting back the black duct to re-seal using Kraso's SD30-T Split mechanical Seal

Installation:

A fully trained contractor specialising in our compound and mechanical duct seals was dispatched to the site to replace outdated compound re-enterable seals. The existing seals utilised a triangular-shaped foam and red sealant, which had begun to leak along the outer edge of the duct. To rectify the issue, the contractor cut back the duct and resealed it using mechanical duct seals from Kraso, chosen for their ability to be installed even in conditions with running water.

• Customisable to any size
• Manufactured within 24 hours
• No specialist tools required
• Immediate use with no curing time, among other benefits.
• Water, gas, rodent & radon tight

Duct type & size - 125mm seals

Cable Type: Low Voltage LV XLPE/SWA
Outer Diameter: 36.91mm & 52mm

Seals Ordered

• 9 x KRASO SD Split 125mm Customised Seals to suit the cables above.

Timeline

• Enquiry to quote: 2 hours
• Manufacturing time: 24 hours
• Shipping from Germany: 7 days

Curious about the red nuts on the front of the seal?
Here's the cool part: they feature patented torque technology. No special torque wrench is needed; simply use a regular wrench, tighten until you hear a click, and you're done. It's super easy and efficient!

Website Link: Click HERE to view product information

 _____________________________________________________

Project - 1500mm Pipe Duct Sealing Installation

Installation: A specialist project, involving a very large 1500mm plastic pipe that required sealing within an undisclosed area required the expertise and customisation skils of AC Cable Solutions & Kraso GMBH. Who can make a mechcnial split transit seal for a 1500mm pipe within 48 hours - Not many, but we can.

• Customisable to any size
• Manufactured with 48 hours
• No specialist tools required
• Immediate use with no curing time, among other benefits.
• Water, gas, rodent & radon tight

Duct type & size - 1500mm

Products used: Kraso DD Split

Website Link: Click HERE to view product information

It's a beast of a seal

 ________________________________________________________________

Project - Replacing Expanding Foam with Mechanical seals from Kraso GMBH

Installation: A major water utility that has been utilising expanding foam for many years decided it was about time to switch to a proper engineered duct sealing solution. They opted for Kraso's range of mechanical seals, as these offered features that matched their requirements:

• Suitable for use in damp areas, even with running water
• Versatile range
• Reusable
• Re-enterable and removable
• No specialist tools required
• Immediate use with no curing time, among other benefits.

Duct type & size - 100mm ribbed ducting

Products used: Kraso Universal Seal 4 x (6 to 33mm)

Website Link: Click HERE to view product information

Before Picture:

After Picture

Summery

It's clearly evident that this looks like a professional product and installation, now providing a fully water- and gas-tight seal that is resistant to H2S, methane, and chlorine gas.

The customer is very happy.

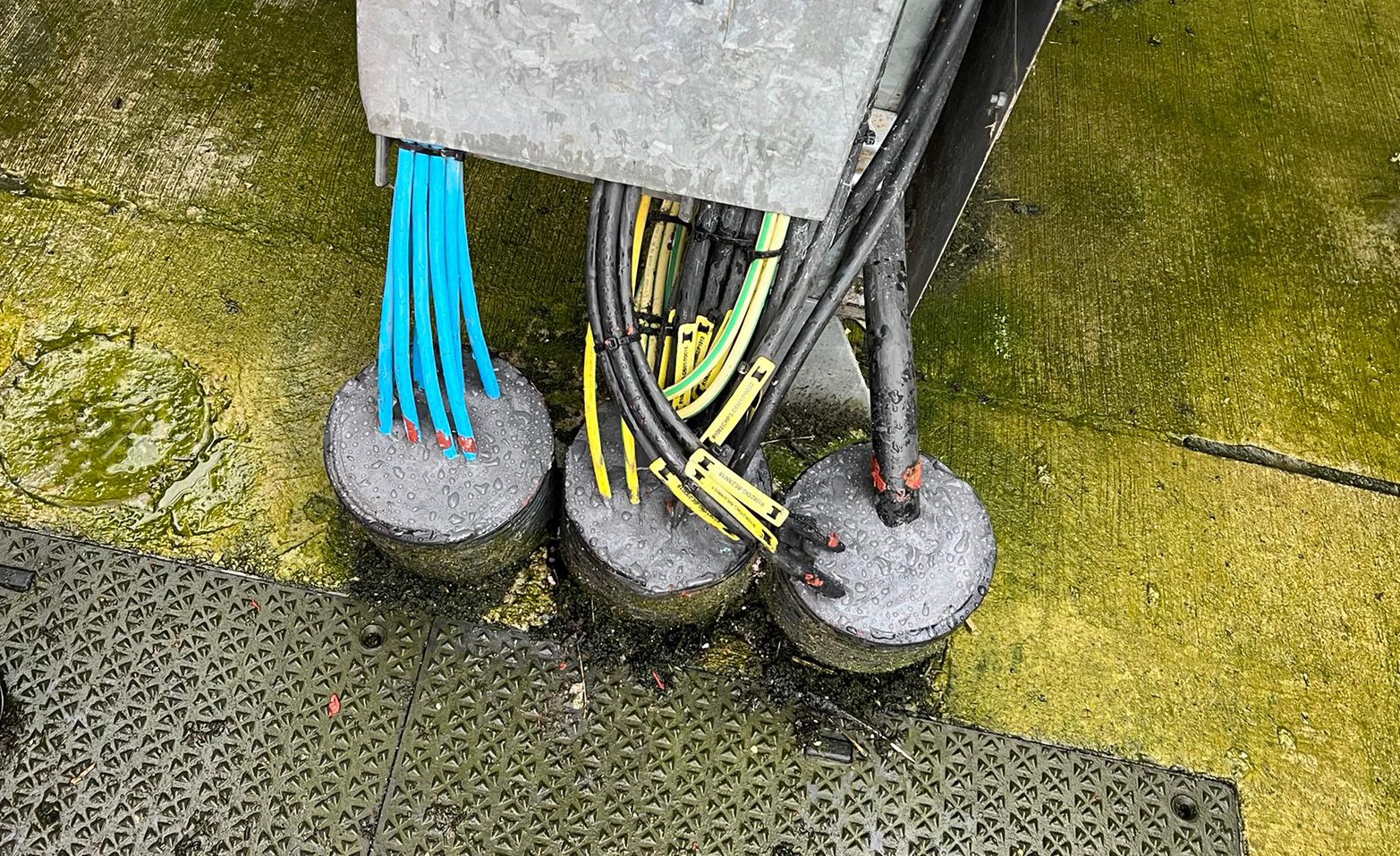

Project: Water Utility's first installation using AC Cable Solutions

Installation: Varios ducts on a Water Water Treatment Plant that required sealing, complying with WIMES & DSEAR

Duct type & size - 150mm ribbed ducting

Products used: Duct Seal LG + GreyStuff

Website Link: Click HERE to view product information
