Kraso – Customisable Split Mechanical Duct Sealing System – Type SD

by Kraso
Description

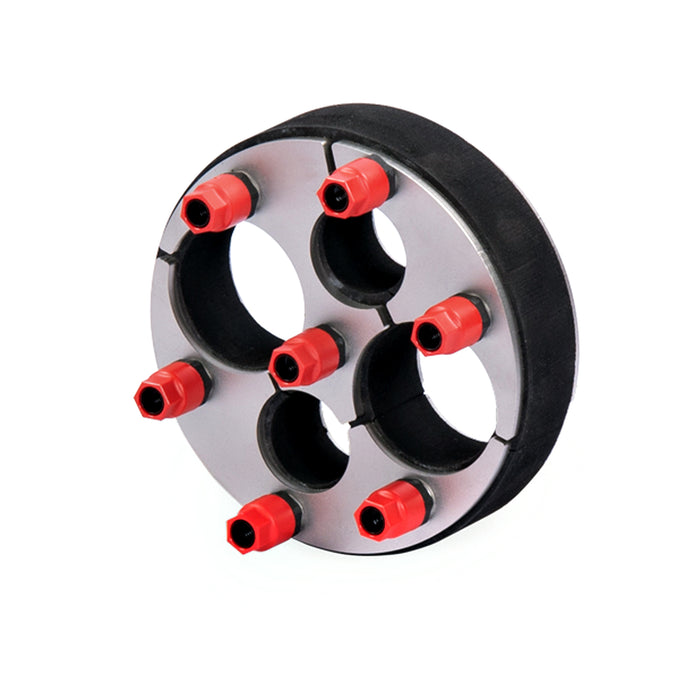

The Kraso SD transit sealing system can be fully customised to accommodate any circular duct size and cable configuration. Like all of Kraso’s duct sealing systems, the SD circular transit seal offers lasting protection against concerns such as flooding, gas permeation, humidity, and the intrusion of rodents. Comprising two components, this seal can be conveniently installed, even in damp conditions and areas with ongoing water flow.

Engineered to thrive in the most challenging environments, this duct sealing system rises above the rest. It conquers intense water and gas pressures while repelling toxic and hazardous elements. Crafted from high-quality, non-corrosive stainless steel V2A, this SD customisable penetration seal guarantees longevity and reliability. What's more, it incorporates Kraso's exclusive patented Torque control nut, streamlining the installation process and ensuring the precise tightness of every nut, eliminating concerns of both inadequate and excessive tightening.

Ordering

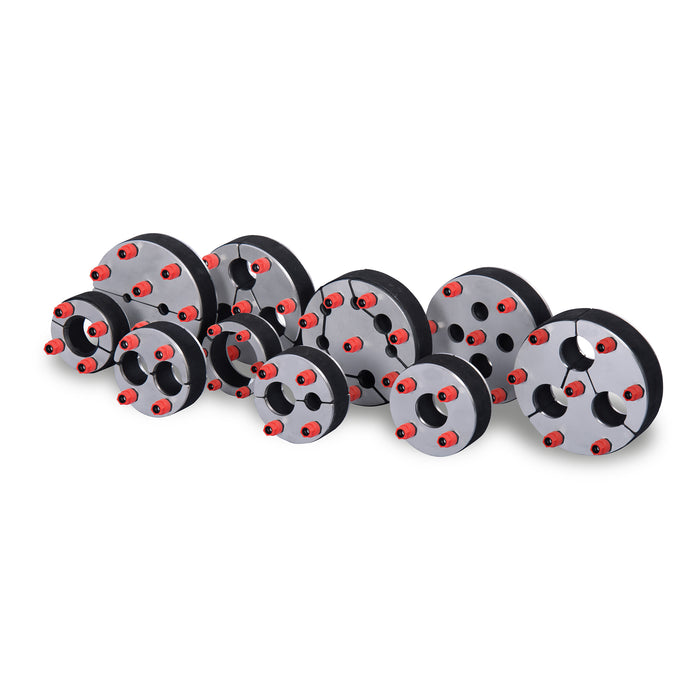

Type SD mechanical duct seal can accommodate duct sizes from 50mm up to 500mm, with customised holes cut to the required number & size of cables that occupy the penetration.

SD Seals can be customised for boreholes or ducts of any size and cable configuration. Kindly specify the borehole size and the number of cables requiring sealing in the message field of the quotation form.

Key Features

  • Fully customisable - Please get in touch with us to receive more information.
  • Can be installed with existing cables in place
  • Up to 5.0 Bar pressure resistance (50 meters of water)

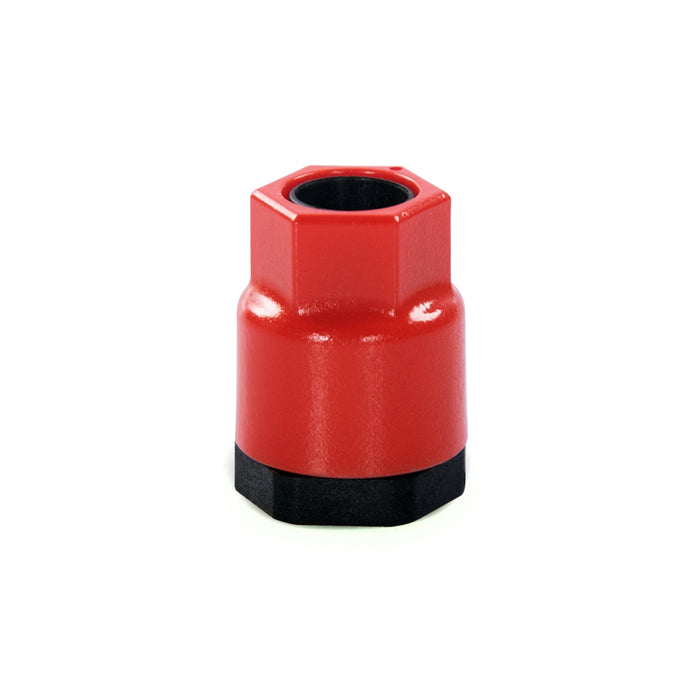

  • Patented torque nut - NO torque wrench required
  • Resists Toxic Gases - Raydon, Hydrogen Sulfide, Methane & Chlorine gas
  • Resists Hydrocarbons

Manufacturing lead times are generally 24 hours plus seven days shipping.

Click to view on Kraso Website >>>

Summary

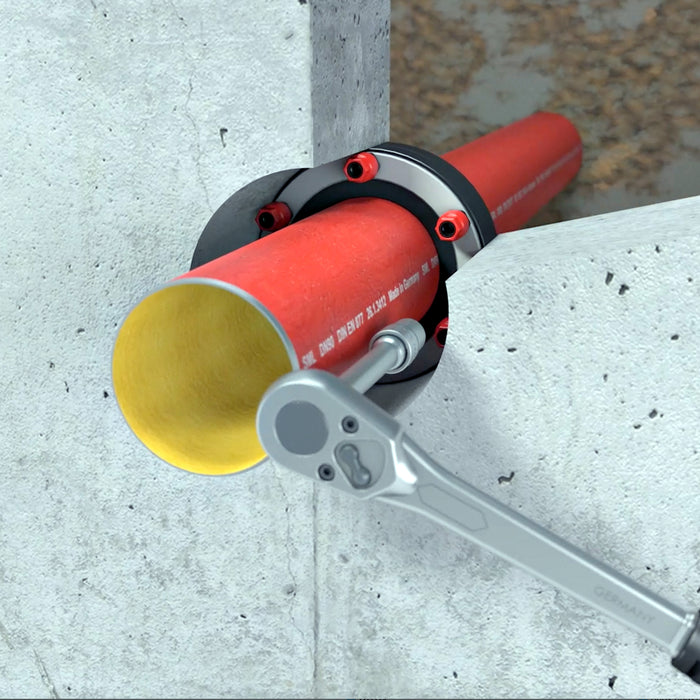

Kraso Type SD  can be installed into sleeves, conduits and bored holes.

  • Watertight
  • Gas-tight
  • Rodent resistant
  • Up to 5 bar pressure resistance
  • No torque wrench is required
  • Radon resistant
  • Hydrocarbon resistant
  • High-temperature resistance





Specifications

Type of Test

Result / Material

Test Standard

Water Pressure Resistance

2.5 bar / 30mm thickness of rubber
5.0 bar / 60mm thickness of rubber

MPA-Tested

Gas Pressure Resistance

2.5 bar / 30mm thickness of rubber
5.0 bar / 60mm thickness of rubber

DIN EN 13611 (7.2)

RADON Gas

Passed

IAF Tested

Hydrocarbons

Passed

TBA

Gas Permeability

Passed

TA-Air

Temperature Resistance

220◦C

N/A

Metal Plates

Non-corrosive Stainless Steel

N/A

Sealing Rubber

A specially developed mixture of rubber

N/A
