GreenStuff Non-Hazardous Cabinet Base Sealant

Description

GreenStuff — Re-enterable Cabinet Base Sealant (Made in Britain)

GreenStuff is the next generation in cabinet base sealing solutions, designed to protect and improve the efficiency of telecom cabinets, LV distribution cabinets, public lighting cabinets, feeder pillars, traffic control cabinets, and outdoor transformer stations.

This cutting-edge, non-hazardous resin prevents moisture ingress, pest intrusion, and the growth of weeds or plant roots, helping critical components last longer and perform better.

GreenStuff stands out from traditional products because it’s far easier to re-enter, making future maintenance simpler and faster. Its innovative formulation allows smooth, hassle-free re-entry for evolving infrastructure needs.

Proudly Made in Britain and officially certified, GreenStuff is manufactured to high standards, supporting local industry while delivering exceptional quality. Its eco-conscious formulation and time/cost savings make it ideal for modern infrastructure projects.

With GreenStuff, you’re not just sealing—you’re investing in sustainability, reliability, health & safety, and superior performance.


What is Cabinet Base Sealant?

Cabinet base sealant is a specially formulated, flowable compound used to permanently seal the base of outdoor enclosures—such as street cabinets, telecom boxes, transformer stations, and feeder pillars—where cables, conduits, or ground rods enter from below. It protects sensitive electrical equipment by blocking moisture, rodents, insects, and plant growth from entering through the base.


Key Benefits

  • Secures enclosures: Forms a permanent barrier against water ingress, rodents, snakes, insects, and plant roots to maintain internal cleanliness and safety.

  • Improves equipment lifespan: Reduces humidity and biological intrusion to minimise corrosion and interference.

  • Self-levelling & easy to apply: Flows and levels itself in the base—no mixing or special tools required.

  • Re-enterable for maintenance: Unlike concrete, foams, or solid-setting resins, GreenStuff remains cuttable for future access so installers can add/remove cables without destroying the seal.

  • Climate protection: Helps stabilise the enclosure microclimate by reducing humidity and condensation, lowering the risk of signal loss, corrosion, and insulation failure.

  • Fast, clean, permanent: One-component, non-hazardous; no mixing or water needed.


Technical Specifications
  • Packaging: 1 × 2.5 L pack

  • Application temperature: −10 °C to +40 °C

  • Coverage: Approximately (varies by cabinet footprint)

  • Curing time: Up to 20 days (temperature and humidity dependent)

  • Shelf life: 12 months (unopened; store cool and dry)

  • Click here to view the data sheet
Process & Material Data
  • Pot life (process time):

    • 5 °C: 165 minutes

    • 23 °C: 19 minutes

    • 35 °C: 11 minutes

  • Full skin time: Up to 2 hours (surface may remain tacky for up to 48 hours)

  • Viscosity (mixture) @ 25 °C: ~18 Pa·s

  • Density: 1.58 g/cm³

  • Hardness: 39 Shore A

  • Tensile strength: 0.5 N/mm²

  • Water absorption (30 d @ 23 °C): 0.86%

  • Weight loss (28 d @ 120 °C): 21.03%

  • Cured under water: Small bubbles may form on the surface (no effect on product)


Applications
  • LV distribution cabinets

  • Public lighting cabinets

  • Feeder pillars

  • Traffic control cabinets

  • Outdoor transformer stations

  • Telecom cabinets

  • Any installation requiring pest/weed prevention and climate control


Important Notes
  • Skin time: Up to 2 hours depending on conditions (surface may remain tacky for 48 hours).

  • Full cure: Up to 20 days depending on temperature and humidity.

  • Removal: Very easy—break the seal from the inside edge of the cabinet and remove as required.

  • Seasonal note: Curing is slower in winter; a strong skin will form, but the material may remain slightly soft underneath.

Safety

  • EUH208: Contains Trimethoxyvinylsilane (CAS 2768-02-7). May produce an allergic reaction. Wear gloves.

  • Disposal: Once cured in the container, discard as standard domestic waste.


Handling

  • One-component product—shake for 30 seconds before use.

  • Partial use allowed; reseal with the screw cap and the product remains usable for up to one week.

  • Self-levelling formulation.

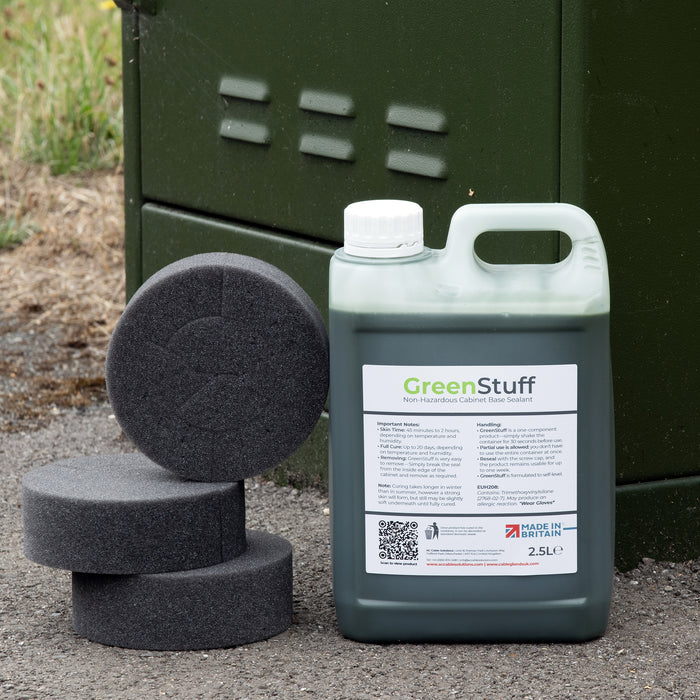

Contents

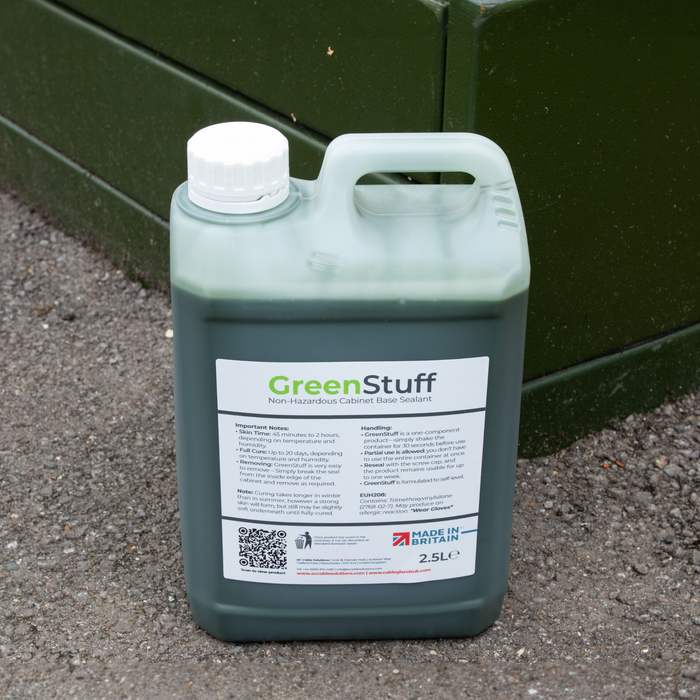

  • 1 × 2.5 L container of GreenStuff resin

  • 3 × circular foam disks (included when bought as a kit; 2.5 L containers also sold individually)

  • 1 × pair of nitrile gloves


Site Preparation

  • Can be poured directly onto fairly dry concrete—no sand required.

  • If standing water is present: sprinkle cement to absorb moisture and form a crust before pouring.

  • If the concrete is completely dry: no additional cement or sand is needed.


Direct-Buried Applications

  • For direct-buried installations, float GreenStuff over the ducts.

  • Ensure the foam flange is properly fitted before application.

Specifications
Potlife (process time) 5°C 165 minutes
Potlife (process time) 23°C 19 minutes
Potlife (process time) 35°C 11 minutes
Full Skin Time Up to 2 hours - Surface can still remain tacky for 48 hours
Viscosity (mixture) 25°C ca.18 Pa.s
Density 1.58g/cm³
Hardness 39 Shore A
Tensile Strength 0.5N/mm
Water Absorption (30d/23°C) 0.86%
Weight Loss 28d/120°C 21.03%
Surface Structure
Cured Under Water
Small bubbles may form on the surface.
No effect to product


KEY FEATURES Part No. Description Unit Order Unit
  • Non-Hazardous Formulation: Free of carcinogenic ingredients; no special labelling or handling required.
  • One-Component Design: No need for mixing; ready to use directly from the container.
  • Superior Bonding on Wet Surfaces: Adheres and cures effectively on wet surfaces, including sand and wet concrete.
  • Self-Levelling: Ensures an even and smooth finish, filling gaps and creating a seamless seal.
  • Re-enterable: Easy to re-enter for future maintenance.
  • Eco-Friendly Green Colour: Visually distinct while embodying eco-conscious values.
  • Reuseable: Can be opened/closed for upto 1 week.
  • Durable on All Surfaces: Bonds and cures reliably on sand and wet concrete.
  • Made in Britain: Supports local manufacturing and high standards.
  • Cost-Efficient: Saves time and reduces installation waste.
AC-GREENSTUFF/
VMSPEC/2.5LTR
Virgin Media Cabinet Base Sealing Kit 2.5 Litre 1 x 2.5 Litre
+3 Backing Sponges
1 Kit
AC-GREENSTUFF/
RESINONLY/2.5LTR
Cabinet Base Sealing Resin ONLY – 2.5 Litre 1 x 2.5 Litre Container 1 Unit

Cabinet GreenStuff Volume Requirements

The nature of this product and the type of container used, when pouring the resin clings to the sides of the container, so there will always be some wastage, but if left to settle the resin falls from the sides and levels, which can then be re-used.

To use all the base sealant, it is possible to cut open the container, and scrape the container, to utilise all the product.
Type of Cabinet Size (mm) No. of Ducts Volume of GreenStuff Required
VMFB2 332 x 335 1 x 96mm Half a container of GreenStuff
VMSD3i 535 x 250 2 x 96mm 3/4 of a container of GreenStuff
VMSD1i 535 x 315 3 x 96mm One whole container of GreenStuff

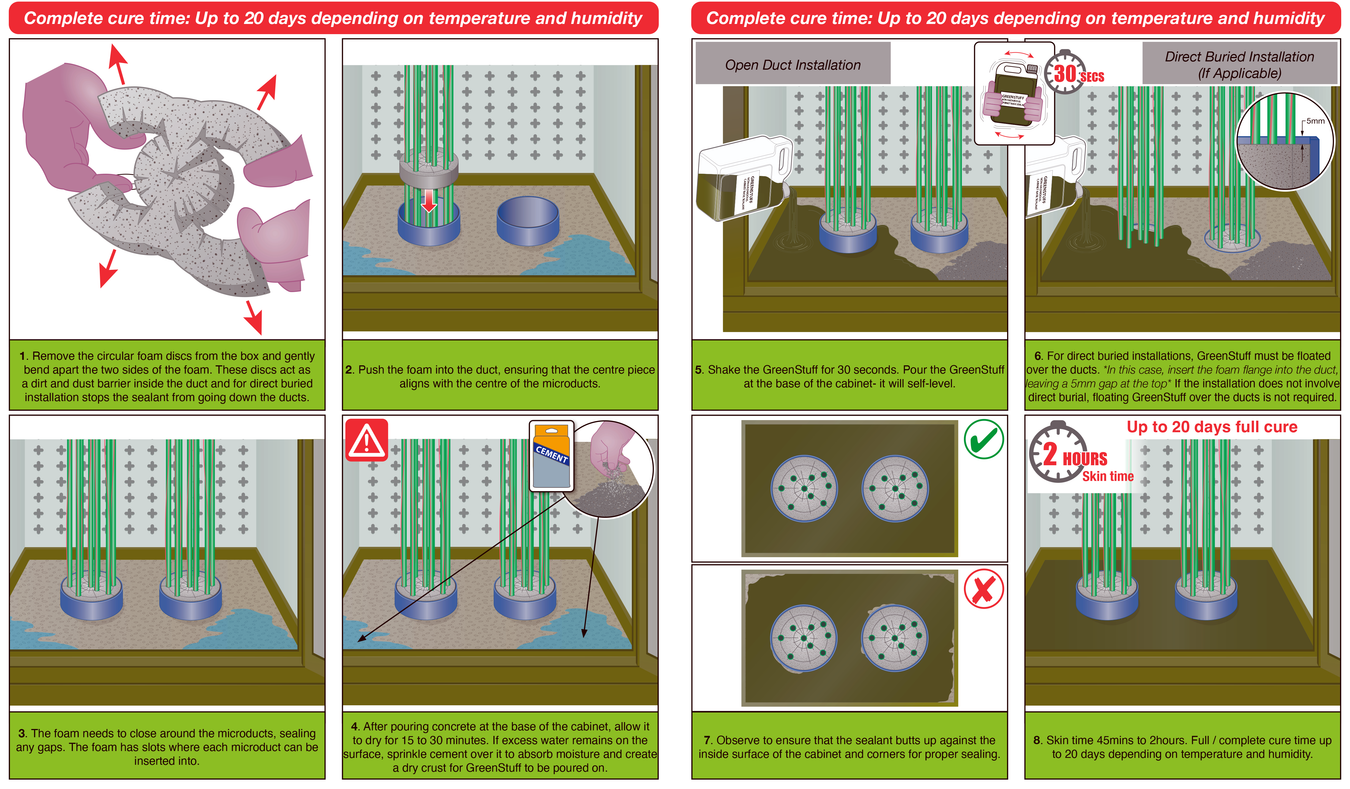

Installation Instructions
