Kraso KDS Heatshrink Sealing attachments

Description

Introducing the KRASO KDS Heatshrink sealing connections - the ultimate choice for secure and watertight cable and pipe entry in new construction projects. Designed with advanced heat-shrink technology, the KRASO KDS systems protect your building against water and gas ingress, providing long-lasting durability and reliability.

Key Features:

Bayonet Fitting with Union Nut and Anti-Twist Lock:
The KRASO KDS systems feature a robust bayonet fitting secured with a union nut and an anti-twist lock. This design prevents accidental opening, ensuring a secure and reliable connection throughout the installation.

Versatile Port Options:

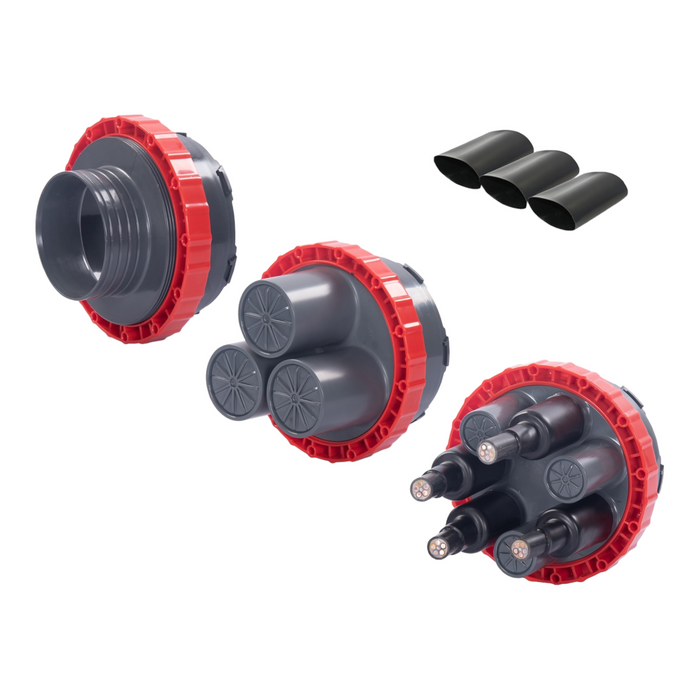

The KDS system offers three port configurations to suit various project needs:

• 1 Port: Suitable for diameters ranging from 34mm to 101mm.
• 3 Ports: Suitable for diameters ranging from 22mm to 59mm.
• 7 Ports: Suitable for diameters ranging from 13mm to 33mm.

Each port is delivered fully sealed with watertight covers. These covers can be easily knocked out with a hammer when ready for use, allowing for quick and efficient installation.

Heat-Shrink Technology for Optimal Sealing:
The system includes heat-shrink sleeves approximately 20 cm in length. When heated, these sleeves shrink down tightly over cables and entry ports, creating a highly effective seal that prevents water and gas from entering the building or ducted networks.

Pressure Resistance Up to 1.0 Bar:
The KRASO KDS systems are engineered to withstand water pressures up to 1.0 bar, making them ideal for environments where water ingress protection is critical.

Compliant with Industry Standards:
The KRASO KDS systems conform to the WU Directive for Load Classes 1 and 2, ensuring they meet the rigorous standards required for waterproofing in new build construction.

Customisable Solutions for Complex Projects

The KRASO KDS 90 and KDS 150 systems are designed to be fully customisable, allowing you to configure them as sealing packages or as part of a comprehensive building entry system. Whether you’re working on a simple installation or a complex construction project, the KRASO KDS systems can be tailored to meet your needs.

Expert Consultation Available

Need help choosing the right configuration? Our team of experts is here to assist you. We offer detailed advice and on-site consultations to ensure that your KRASO KDS system is perfectly suited to your project requirements.

Selection Table
