Hawke Compression System
Description
The Unique Hawke Compression System is used in rectangular frames to compress and seal the installation of cables/pipes within HF modules.
It is composed by:

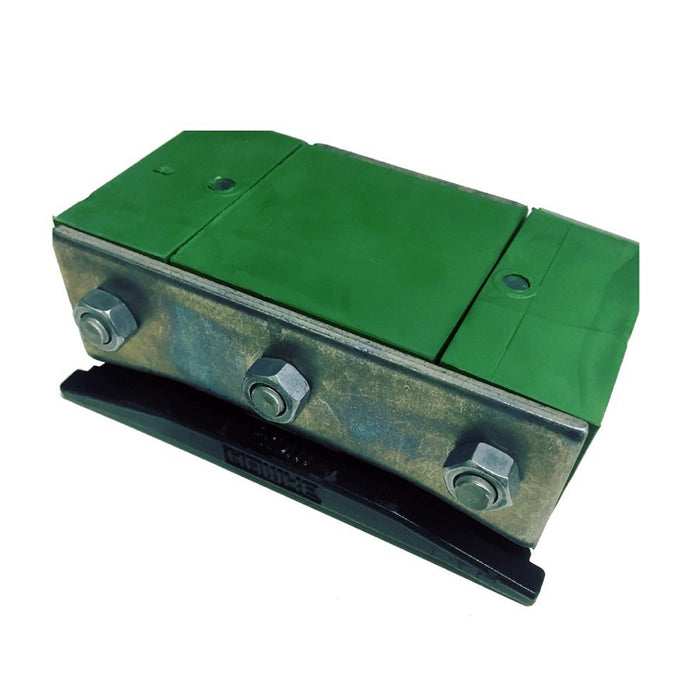

- Endpacker: The final element of the frame installation, this is inserted above the compression plate. The tightening of the bolts and the steel insert pins provides pressure to the system and ensures correct sealing.
- Compression Plate: Placed on top of the last row of blocks, this plate distributes the pressure from the endpacker to ensure the correct compression is applied to the system.
- Available in 120 and 60mm width (for 120 and 60 mm frames).
- Designed to be installed in all rectangular apertures.
- Materials: Mild Steel, Stainless Steel.

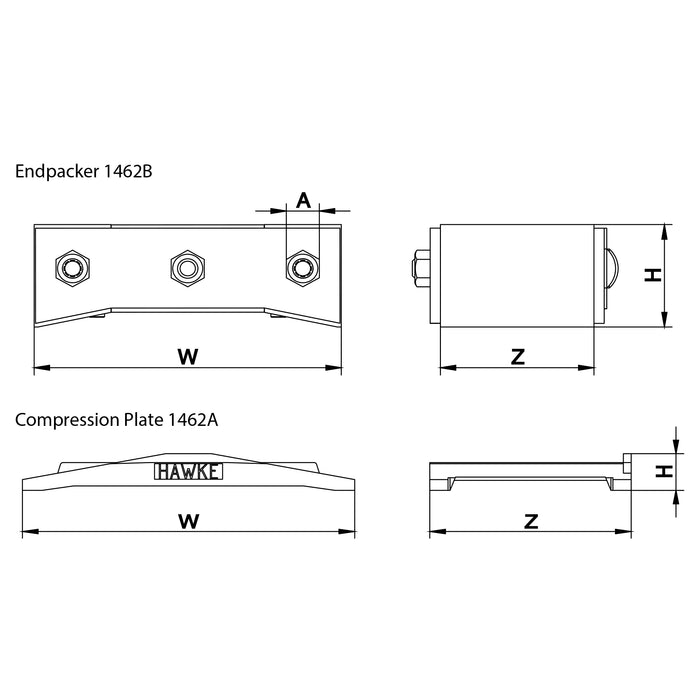

| Description | External Dimensions | A | Weight(kg) | |||||
|---|---|---|---|---|---|---|---|---|
| Qty | W(mm) | H(mm) | Z(mm) | Mild Steel | Stainless Steel | |||
| Compression System/1462 120mm | Enpacker/1462B 120 | 1 | 120 | 42 | 60 | 13 | 0,8 | 0,8 |
| Compression Plate/1462A 120 | 1 | 127 | 17 | 77 | - | 0,4 | 0,4 | |
| Compression System/1462 60m | Enpacker/1462B 60 | 1 | 60 | 42 | 60 | 13 | 0,4 | 0,4 |
| Compression Plate/1462A 120 | 1 | 64 | 17 | 77 | - | 0,2 | 0,2 | |
| Compression System/962 180mm | Enpacker/962B 180 | 1 | 180 | 42 | 60 | 13 | 1,2 | 1,2 |
| Compression Plate/962A 180 | 1 | 187 | 19 | 81 | - | 0,6 | 0,6 | |
| Compression System/963 10mm24 | Enpacker/963B 240 | 1 | 240 | 42 | 60 | 13 | 1,5 | 1,5 |
| Compression Plate/963A 240 | 1 | 247 | 19 | 81 | - | 0,9 | 0,9 | |
| Compression System/964 360mm | Enpacker/964B 360 | 1 | 360 | 42 | 60 | 13 | 2,3 | 2,3 |
| Compression Plate/964A 360 | 1 | 267 | 19 | 81 | - | 1,3 | 1,3 | |
