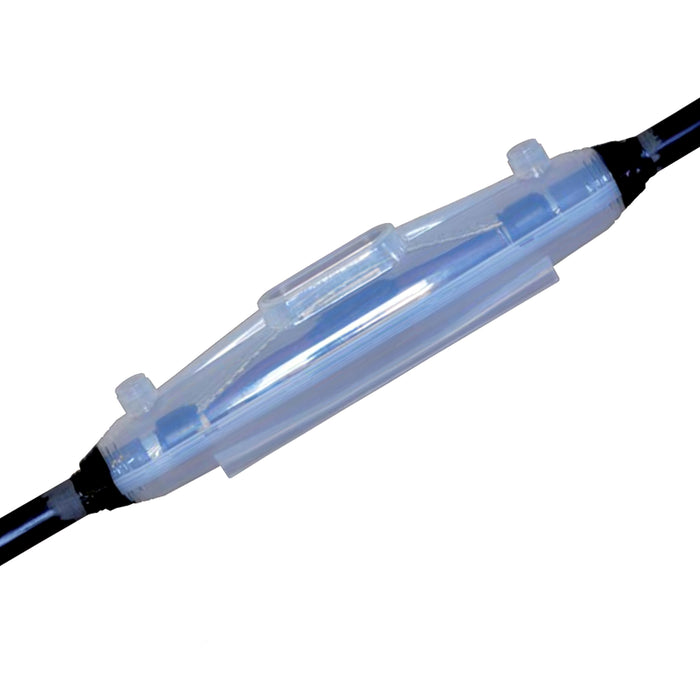

Prysmian BICON MPJEM Industrial Cable Joints (LV)
Description
Low Voltage Industrial Straight Joints- 600-1000V. Suitable for use with SWA cables to BS5467, BS6346 and IEC502 with polymeric insulation and copper conductors from 1.5mm2 to 400mm2.
Shell Dimensions
| Product No. | Min Box Entry ØA (mm) | Min Box Entry ØB (mm) | Box Length C (mm) | Internal ØD (mm) |
|---|---|---|---|---|
| MPJEMJ1 | 12 | 26 | 185 | 32 |
| MPJEMJ2 | 14 | 32 | 245 | 43 |
| MPJEMJ3 | 23 | 39 | 325 | 44 |
| MPJEMJ4 | 28 | 50 | 375 | 65 |
| MPJEMJ5 | 32 | 58 | 520 | 99 |
| MPJEMJ6 | 45 | 75 | 705 | 124 |
| MPJEMJ7 | 40 | 89 | 862 | 140 |
| MPJEMJ8 | 57 | 95 | 900 | 154 |
Features & Benefits
Prysmian BICON Cable Joints have been at the forefront of jointing technology for many years, from designs using bituminous filling compounds, to the development of the highly successful BICAST acrylic resin jointing system.
Most recently, we have supplemented these ranges with heat shrink and pre-moulded products (BIMOLD). We can now offer a unique package to satisfy all requirements. All four systems are available at voltages up to or above 33kV and, depending on application, each may offer benefits over the others.
For instance, termination of high voltage polymeric cables requiring the facility to disconnect or add in additional cables at a later stage, means that BIMOLD is the logical choice. Likewise, BICAST provides a fast, comprehensive jointing method with a versatile range covering low and high voltage and all cable types.
- Tested and approved to BS EN 50393 and ENATS TS C81/3.
- Includes a constant force spring armour bond.
- Utilises Prysmian’s Low hazard isocyanate free JEM resin.
- Utilises Compact joints shells which minimizes the joint footprint.
- Requires compression connectors (sold separately)
