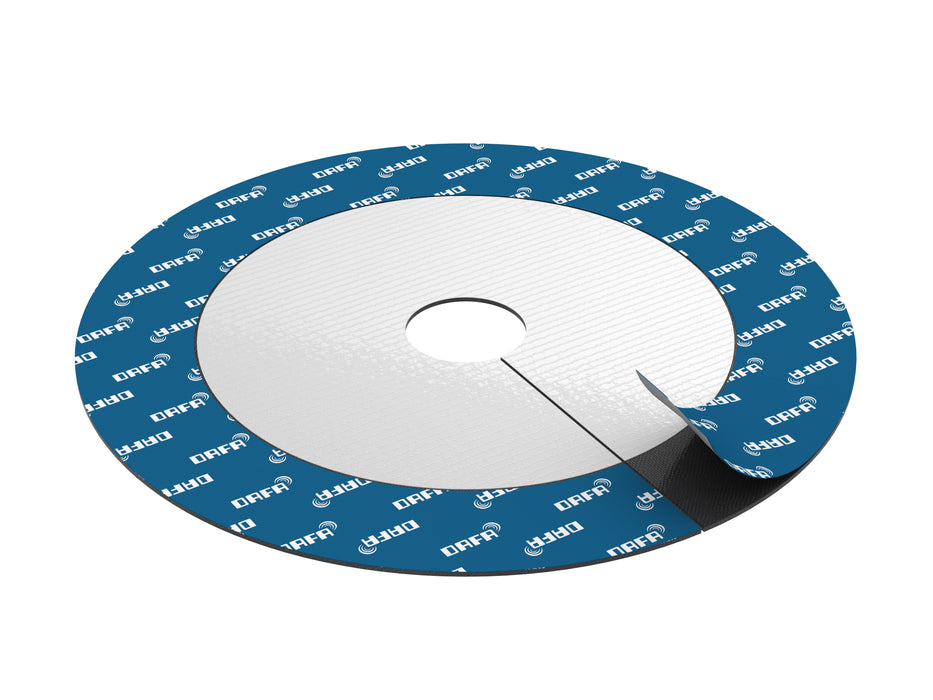

Retrofit Cable & Pipe Airtight Grommet - 160mm

DAFA Renovation Collars – Retrofit Pipe & Cable Sealing Grommets

by DAFA

Description

Upgrade your renovation projects with the DAFA Renovation Collar, the ultimate solution for airtight sealing of existing pipes and cables. Designed explicitly for renovation tasks, these collars ensure an energy-efficient and radon-safe environment by providing exceptional sealing performance.

Product Benefits

  • Airtight Sealing: Designed to seal penetrations in the building envelope during renovations.
  • Radon Resistant: Tested and approved by SINTEF in Norway for radon protection.
  • Self-Vulcanizing/amalgamating: Secure fit without the need for additional sealants or adhesives.
  • Extremely Stretchable: Accommodates a wide range of pipe and cable diameters.
  • UV Resistant: Durable performance even under prolonged UV exposure.
  • Energy Saving: Prevents air leaks, enhancing the energy efficiency of buildings.
  • Split Design: Allows the product to be used when existing pipes or cables are already in place
  • Easy Installation: Mounts directly onto the substrate quickly and safely.

Material Composition

The DAFA Renovation Collar is crafted from black, soft, stretchable, and UV-resistant polyisobutylene. The back features a robust acrylic adhesive specially developed for sealing and laminating all types of vapour barriers, wind barriers, roofing membranes, and radon barriers.

Technical Specifications

  • Weight: 2000 g/m²
  • Thickness: 1 ± 0.2 mm
  • Assembly Temperature: -10°C to +60°C
  • Temperature Resistance: -60°C to +80°C
  • UV Stability: 5000 hours (EN 1297)
  • Storage Conditions: Store in a dry place, up to +40°C

Key Features:

  • Versatile Application: One flexible collar fits standard pipe dimensions and exhaust channels.
  • No Additional Materials Needed: Install without sealant, glue, or grouting.
  • Enhanced Building Performance: Contributes to the overall durability and sustainability of the structure.



Selection Chart
Collar Size (O/D) Starting Hole Diameter Suitable for Pipe/Cable Diameters DAFA Item No. EAN No.
Ø115 mm Ø4 mm Ø5 to Ø30 mm 620046279 5705636532899
Ø160 mm Ø25 mm Ø30 to Ø80 mm 620046277 5705636532875
Ø250 mm Ø75 mm Ø80 to Ø140 mm 620046278 5705636532882
Ø300 mm Ø130 mm Ø140 to Ø180 mm 620047766 5705636535944
Installation

Installation Guide

  1. Preparation: Ensure the substrate is clean and dry.
  2. Positioning: Place the collar over the existing pipe or cable penetration.
  3. Mounting: Press firmly to secure the self-vulcanizing collar onto the substrate with a minimum overlap of 20 mm.
  4. Sealing: The acrylic adhesive forms a strong bond, eliminating the need for additional sealants.
